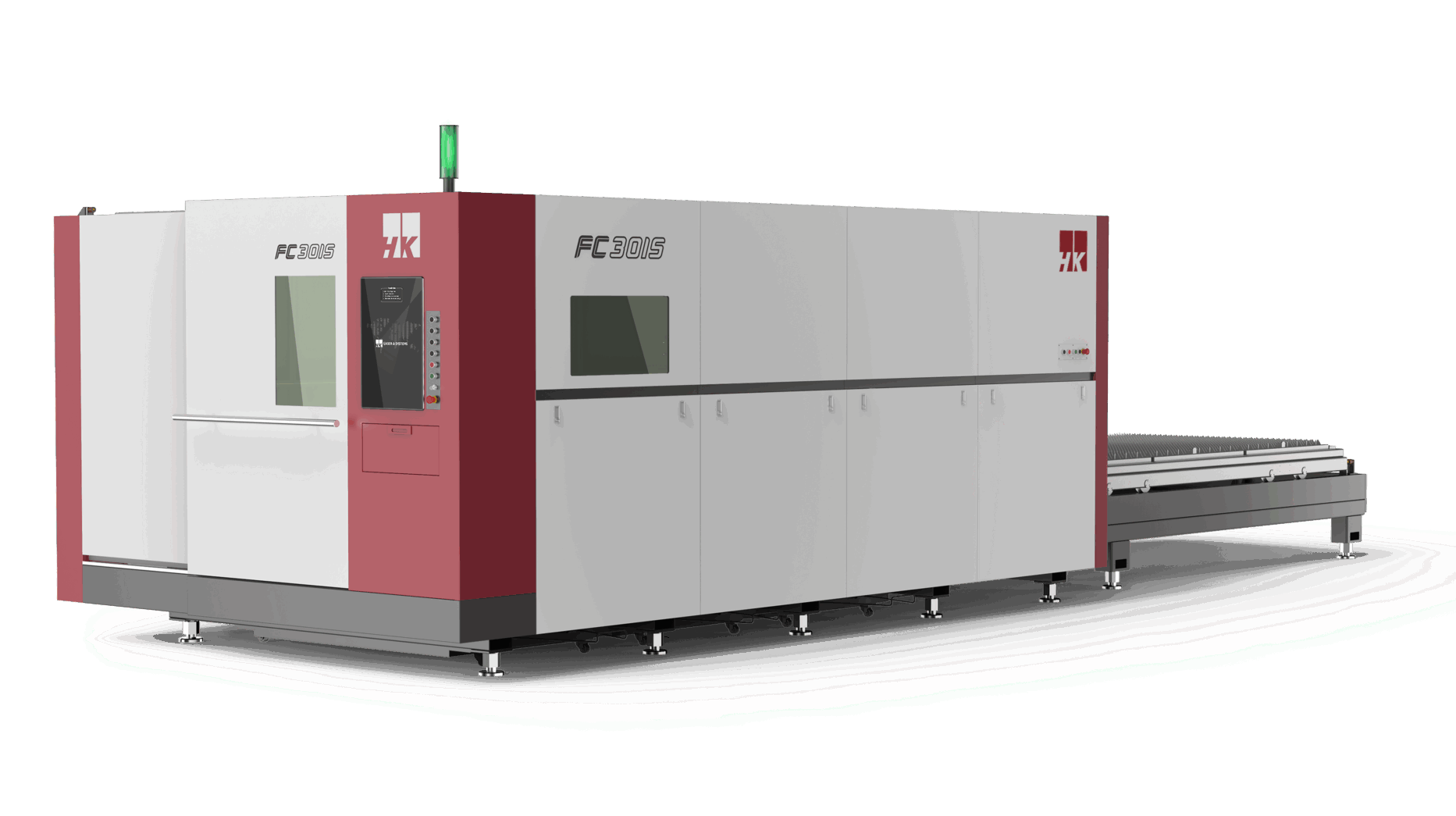

The Alpha FC Series is the best of both worlds, as it is cost-effective while maintaining top-of-the-line quality
Features
Advanced Cutting Head
- New & advanced cutting head, working trouble-free up to 85kw laser power thanks to its sophisticated cooling concept and extended travel paths
- Cutting speed can still be increased by up to 20% compared to the predecessor product
- Smart sensors integrated into the cutting head permanently to monitor the condition of critical components or cutting process parameters
Machine Base & Cutting Bridge
- Cutting bridge is the light-weight Aluminum-extrusion structure to achieve ultra-high stiffness and have the less distortion rate than other conventional gantry structure
- Multi-zone auto duct damper system is applied at the table to maximize extracting fume and particles
- Cutting bridge is equipped with the dual synchronized servo motors drive system
Heavy-Duty & Prep for Automation
- Front side of machine with the sliding door system is ergonomically designed for efficient machine operation and easy access to the table and the control panel
- Service cabinet on the left for consumables or supplies
- Nicely fabricated and power-coated machine covers

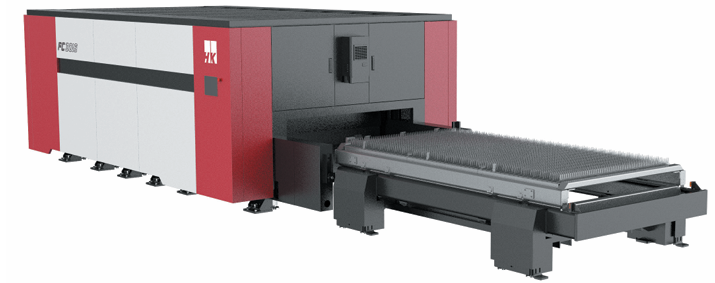

- Dual Shuttle Table system has a hydraulic up-down device to keep the same height (subject to table size)
- Able to be prepped for integration with Smartcell or Tower Automation system (subject to table size)
HK Siemens Control
- The most advanced SIEMENS SINUMERIK control yet
- Newly designed HK Wincc control monitor & intuitive HMI application
- Electrical cabinet is built-in the main machine body
- Data communication by USB or Ethernet LAN

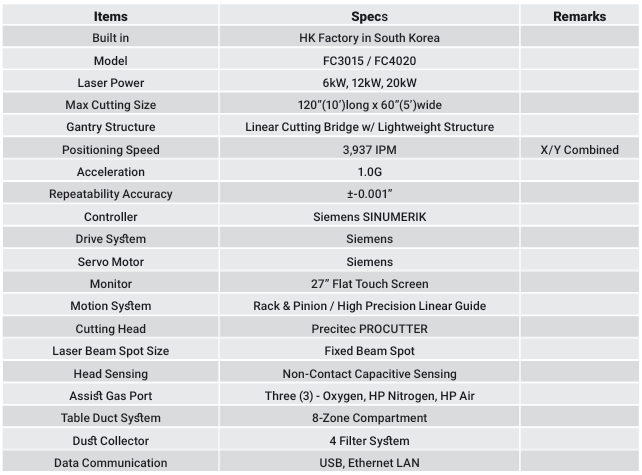

Table Sizes – 5′ x 10′ and 6′ x 13′
Power – 6kW to 20kW
