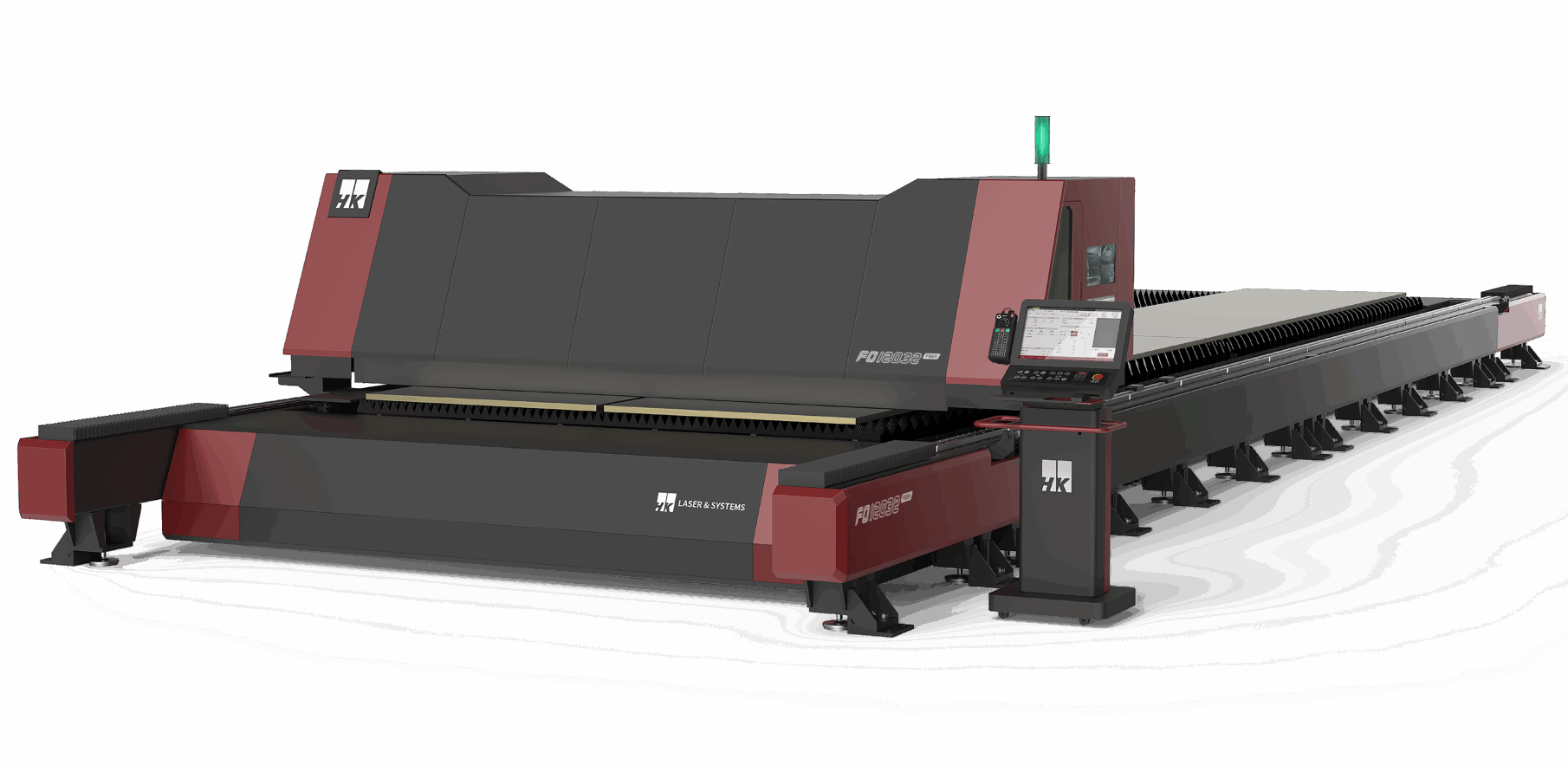

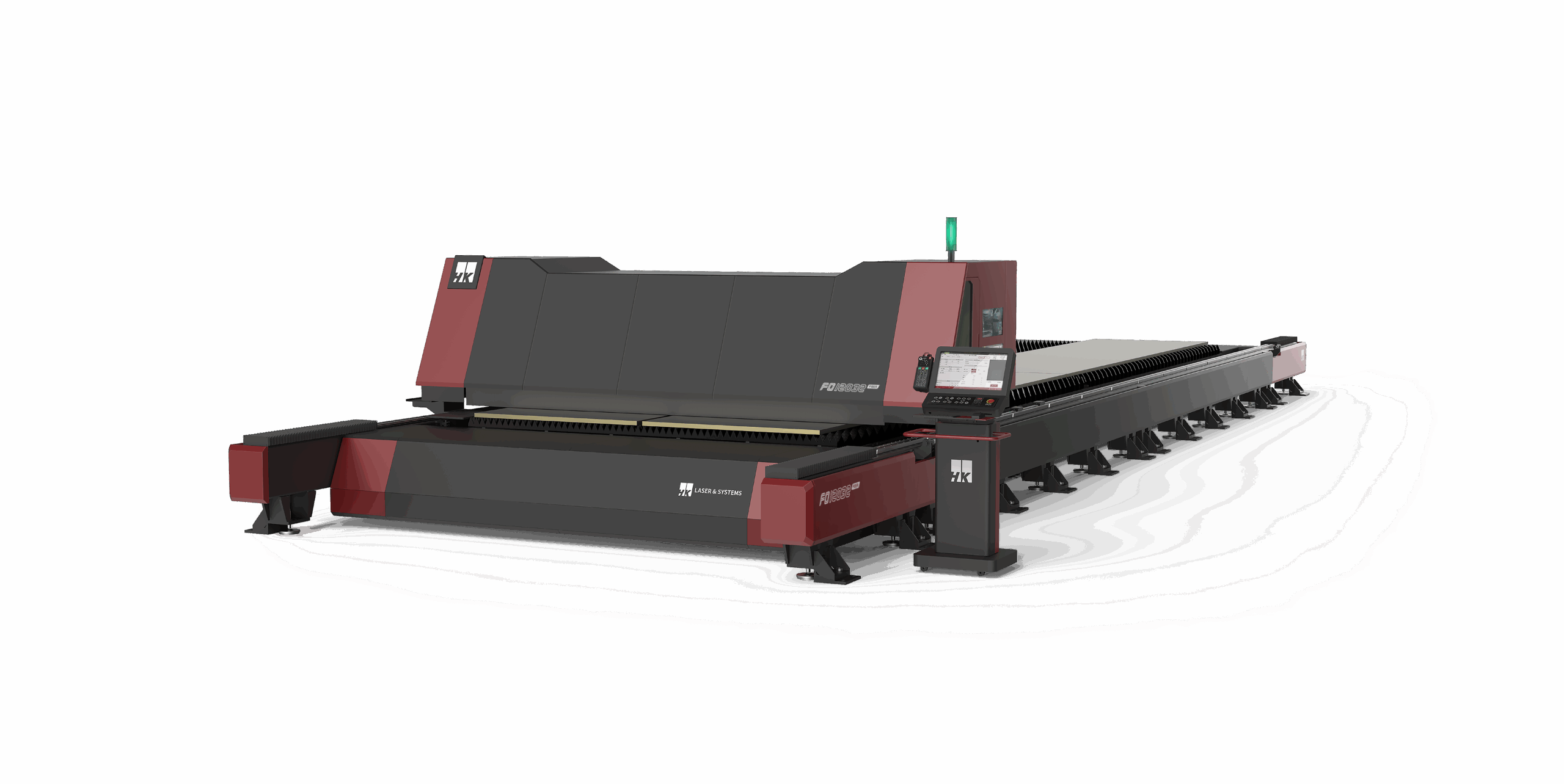

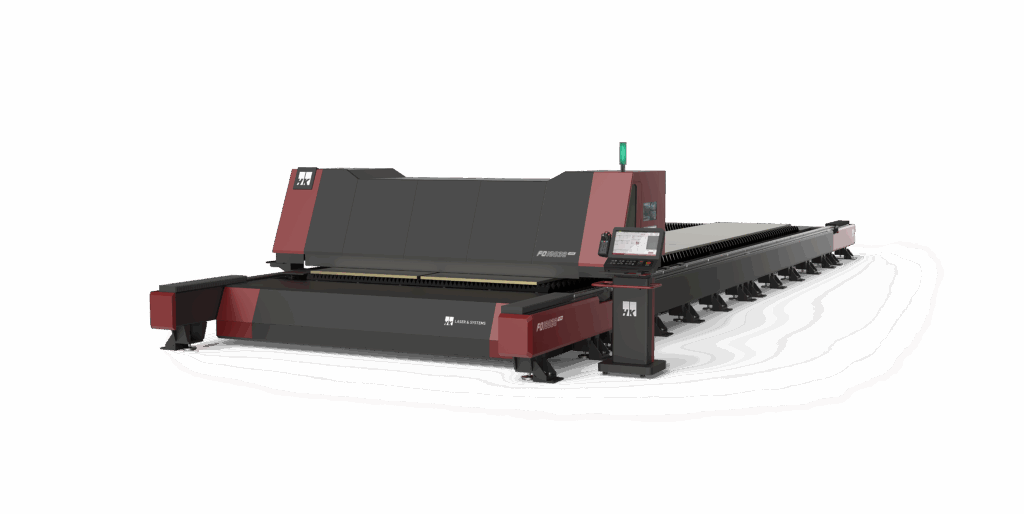

The newly designed FO series features a high-speed advanced gantry system equipped with a state-of-the-art 3D Bevel laser cutting head, dual sync servo drive and high precision rack & pinion linear motion system. Optimized for large and heavy duty industries such as ship building, construction and steel service centers. The FO series is capable of processing over 2 inch steel and alloys, powered by a 30kw, 40kw or 60kw fiber laser source.
Features
Bevel Cutting Head:
- A bevel cutting head on a fiber laser machine is a specialized laser head designed to cut materials at angled edges up to +/- 45deg, rather than just straight, vertical cuts.
- Adds versatility and precision to fiber laser machines by enabling angled, complex cuts that standard heads cannot achieve
Innovative Machine Design:
- Various cutting table options

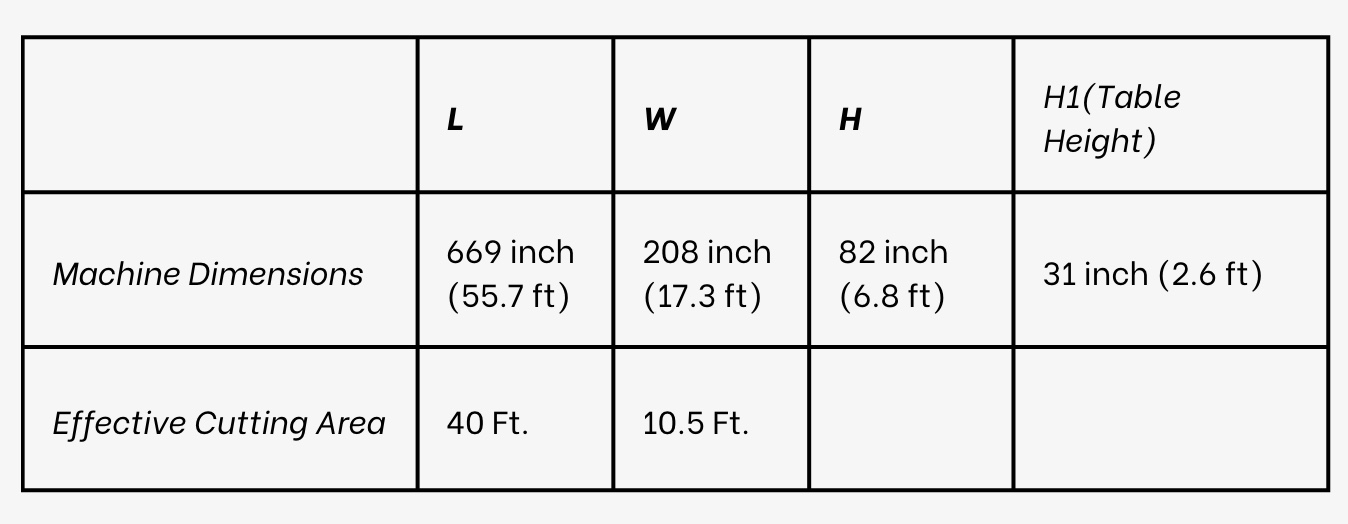

- Ultra heavy-duty machine frame with 40″ tall high table from the floor
- Modular table structure – scalable by every 2 meters
- Fully covered Gantry system w/ synchronized dual servo motor drive
- Rack & pinion linear guide system
- Stairs at front & side for easy service & maintenance
- Modular table & slats structure for easy change
- Scraper or side tray as optional scrap removal

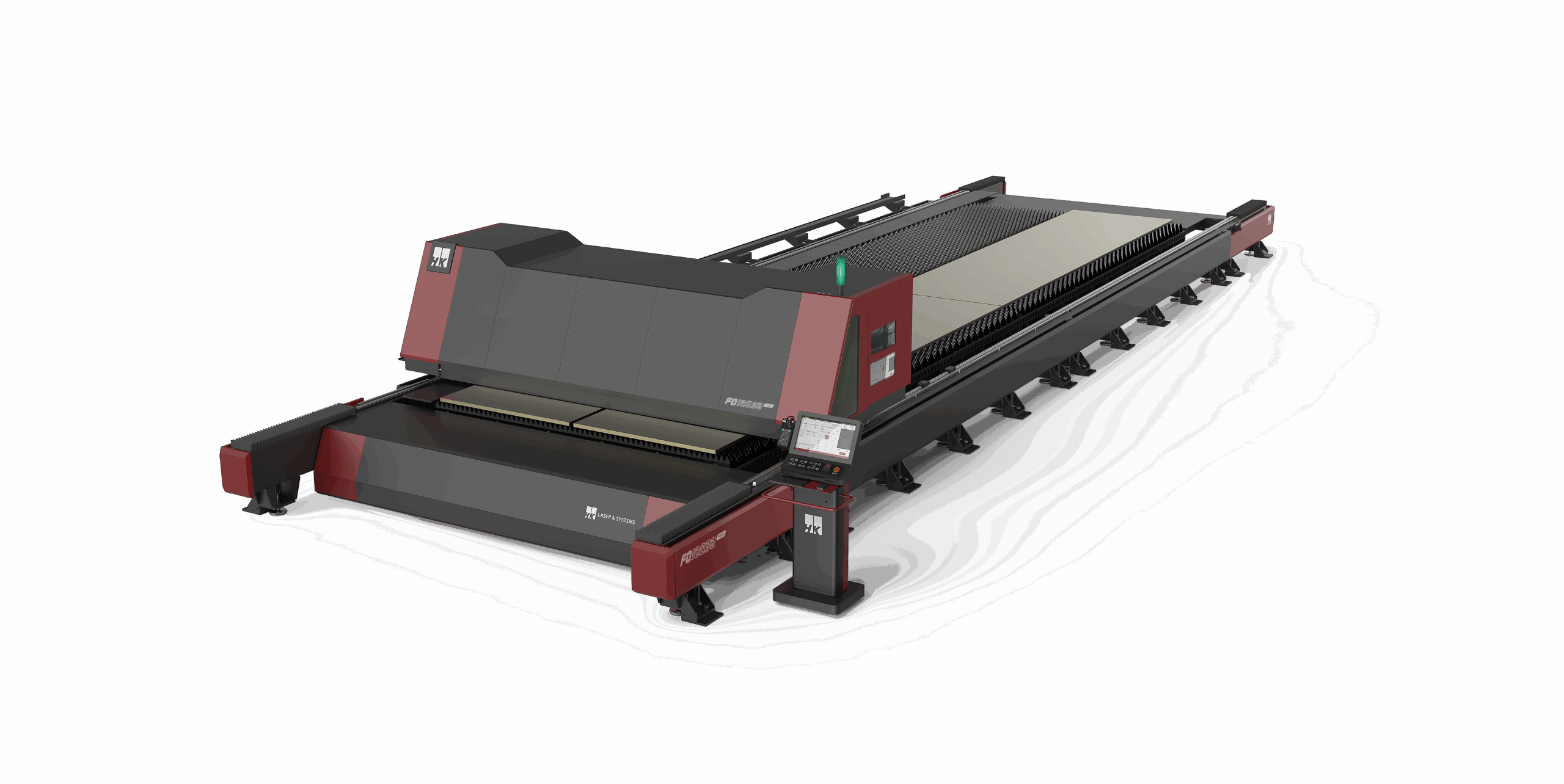

Gantry Bridge:
- Fully covered gantry structure with easily accessible service door
- Laser-welded steel honeycomb structure
- High optimized rigidity & stiffness based on F.E.M dynamic simulation
- Optimized design for X-axis guide rail and motion drive system
- Safety light barrier – Positioned in front and back of the gantry
- Monitoring & Control – Real time monitoring and integrated HMI touch-panel on the side
Great Cutting Capability:
- +/- 45deg bevel cutting for 2″ thick mild steel
- Straight clean cutting for 2″ aluminum or 2.1 stainless
- PC-based NC control with the built-in cutting DB and intuitive HMI screens

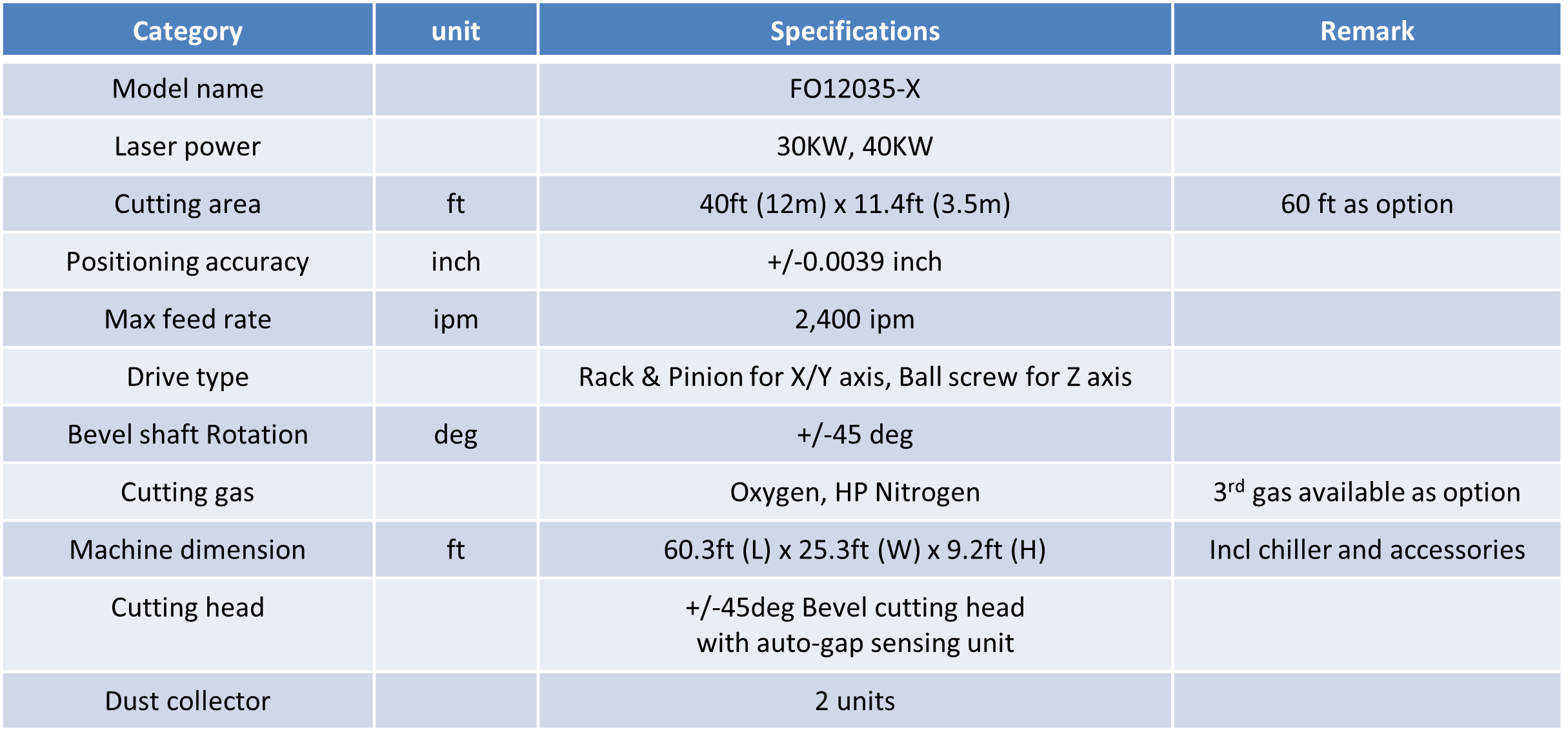

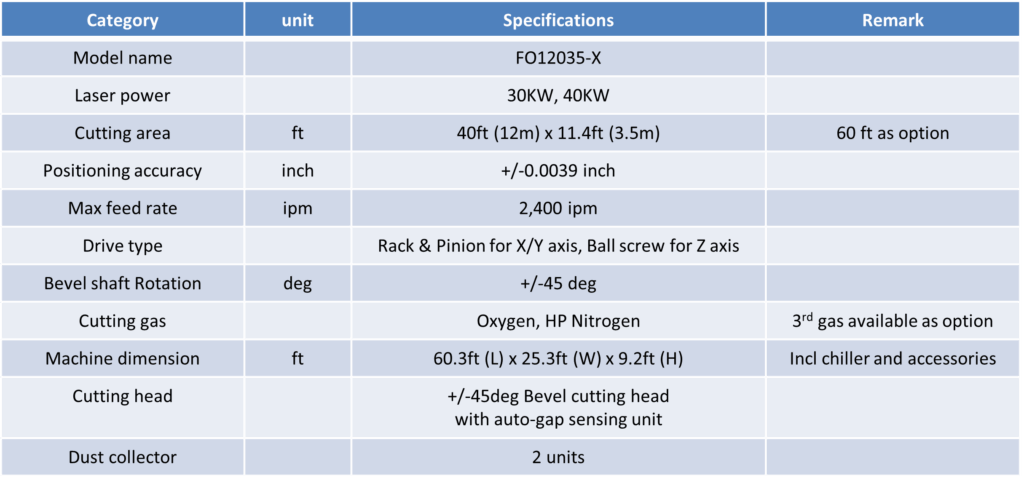

| FO Model | Table Length |
|---|---|
| FO12035 | 12m (40ft) |
| FO14035 | 14m (46ft) |
| FO16035 | 16m (52ft) |
| FO18035 | 18m (59ft) |
| FO20035 | 20m (66ft) |
| FO24035 | 24m (79ft) |
